Overview

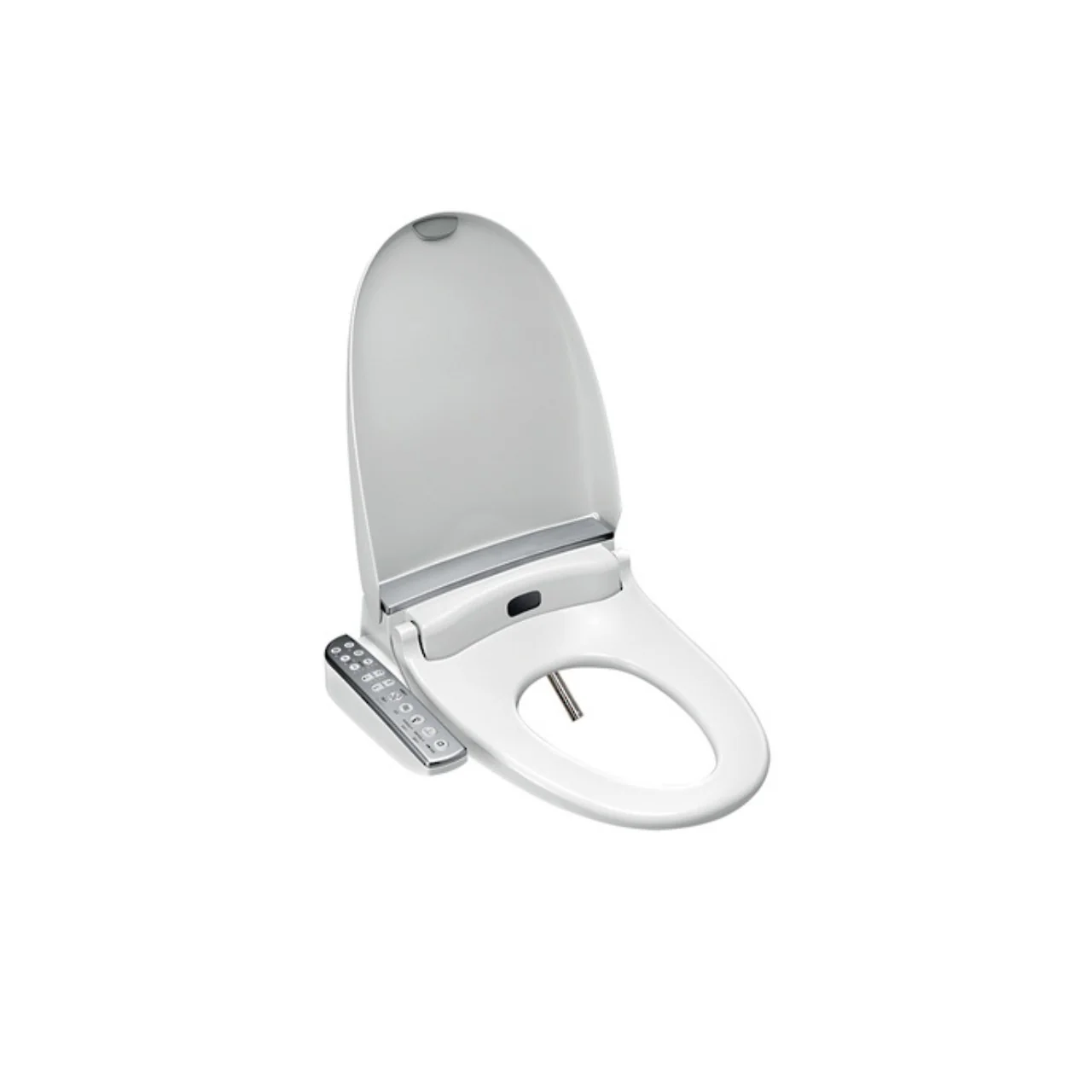

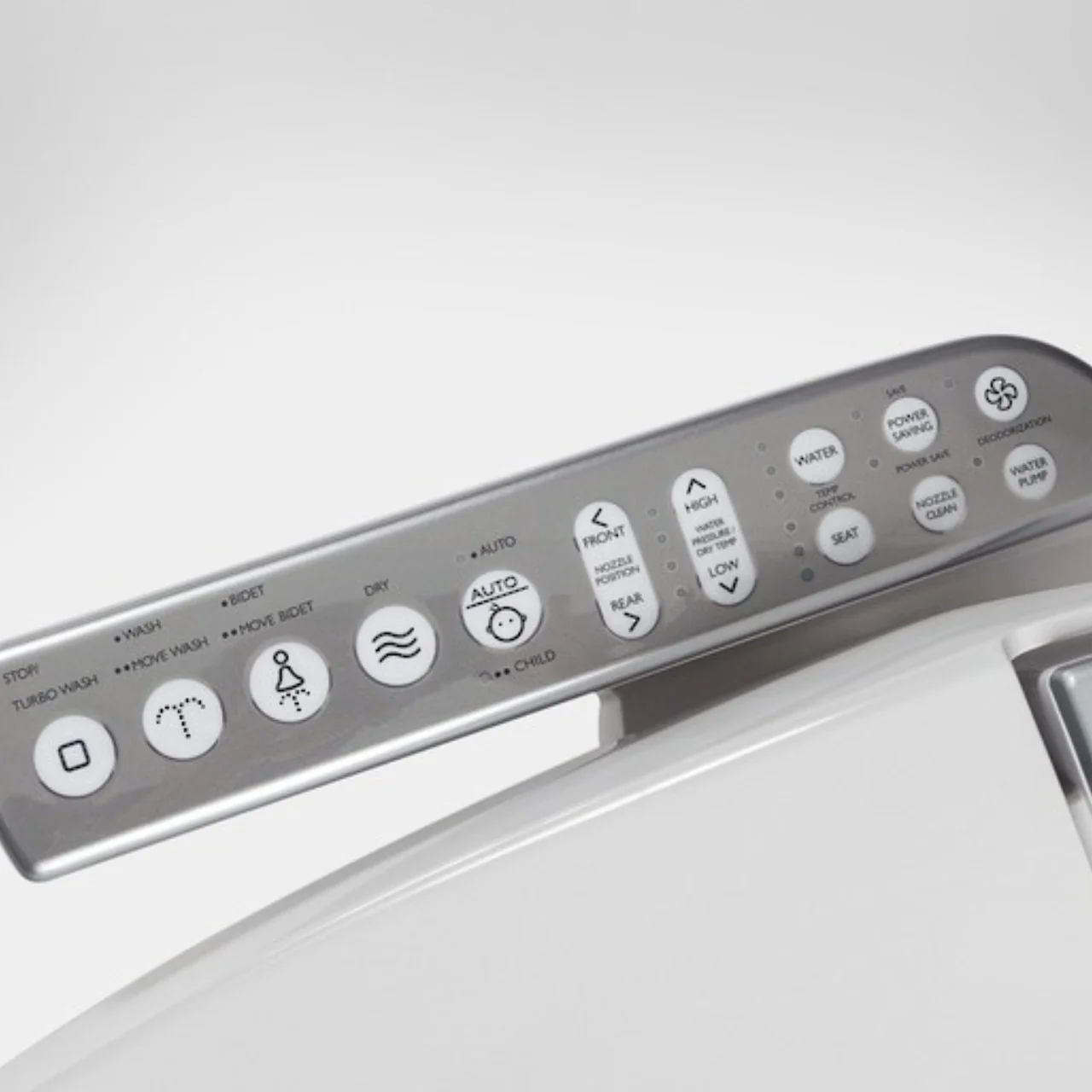

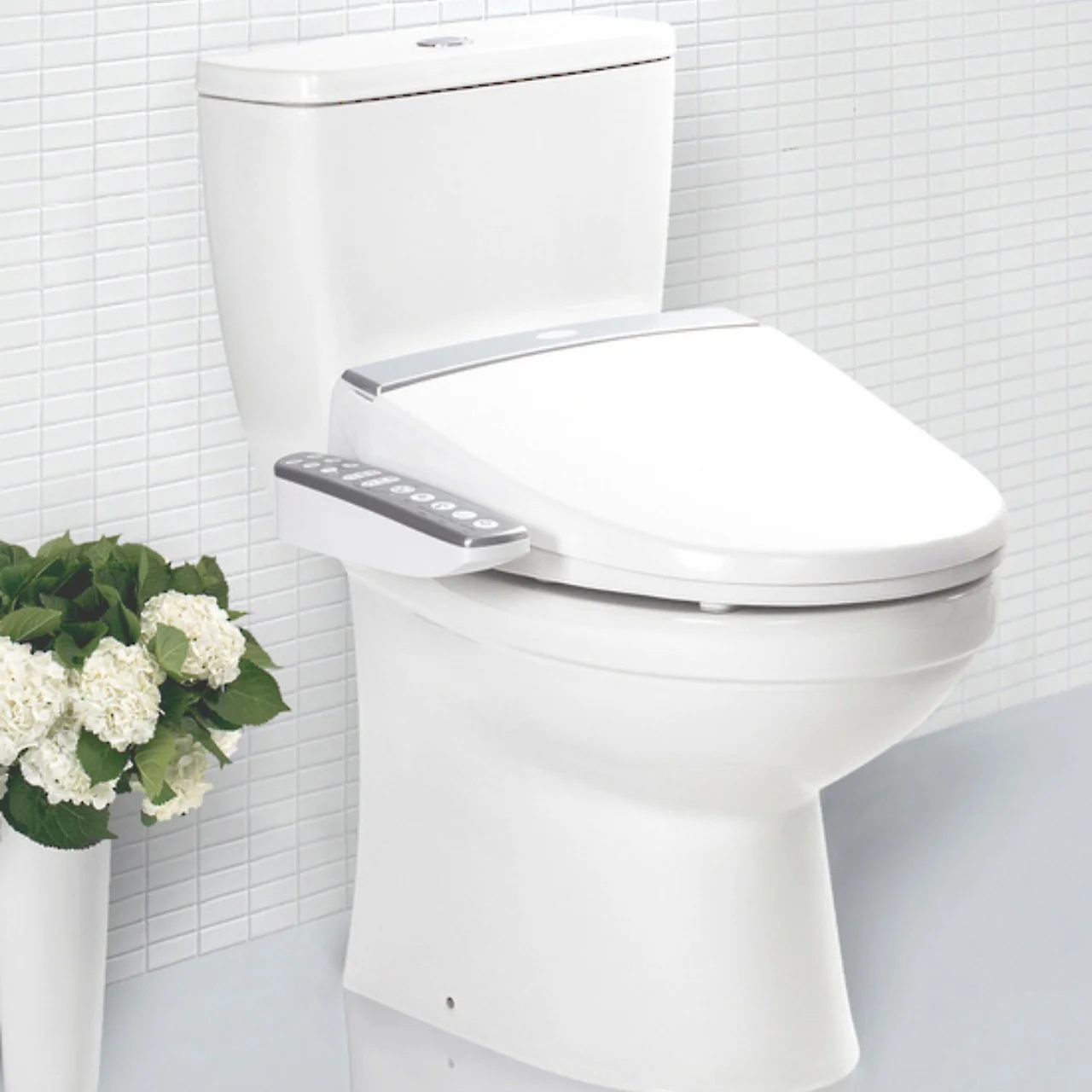

The Englefield Electronic Bidet Seat brings warm-water washing to an existing toilet, with all controls on a panel built into the right-hand side of the seat. It suits a wide range of Englefield and other toilet pans – check yours with the compatibility template below.

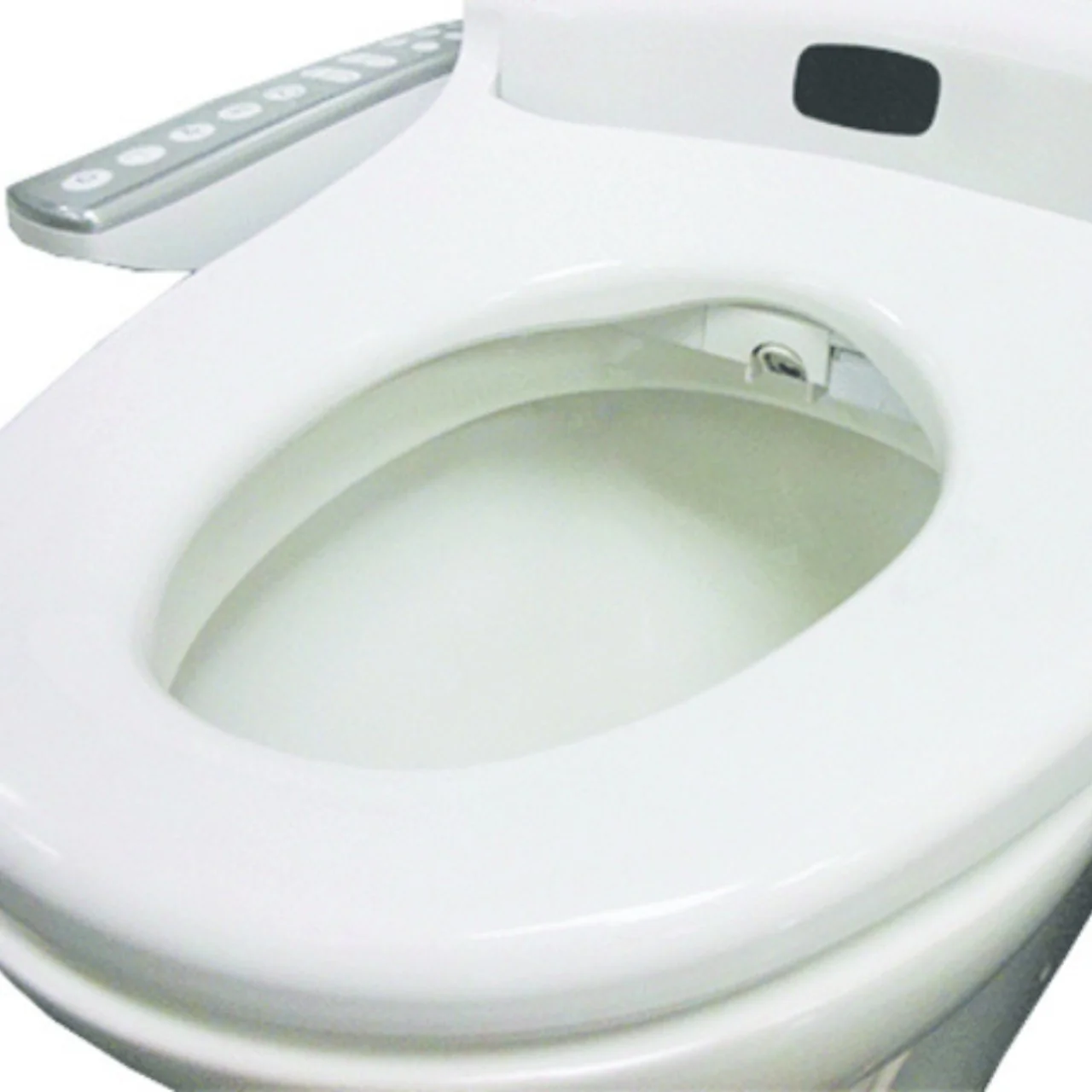

Choose rear or front (feminine) cleansing, with an oscillating spray to cover a wider area, and adjust nozzle position and water pressure to suit. Water is kept warm in a heated reservoir, and the seat, water and dryer temperatures can each be set or switched off. There’s also a warm air dryer, a deodouriser and two power-saving modes.

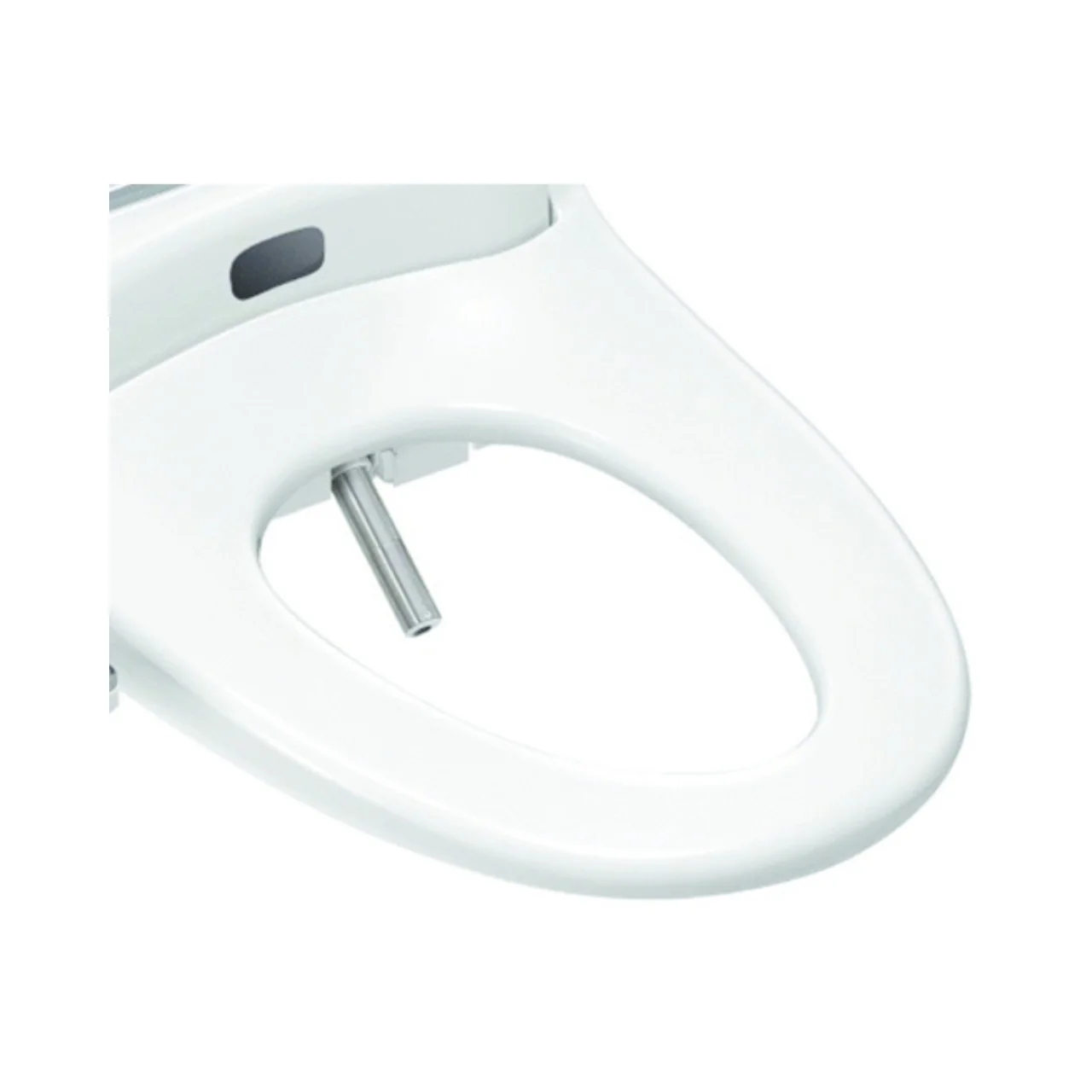

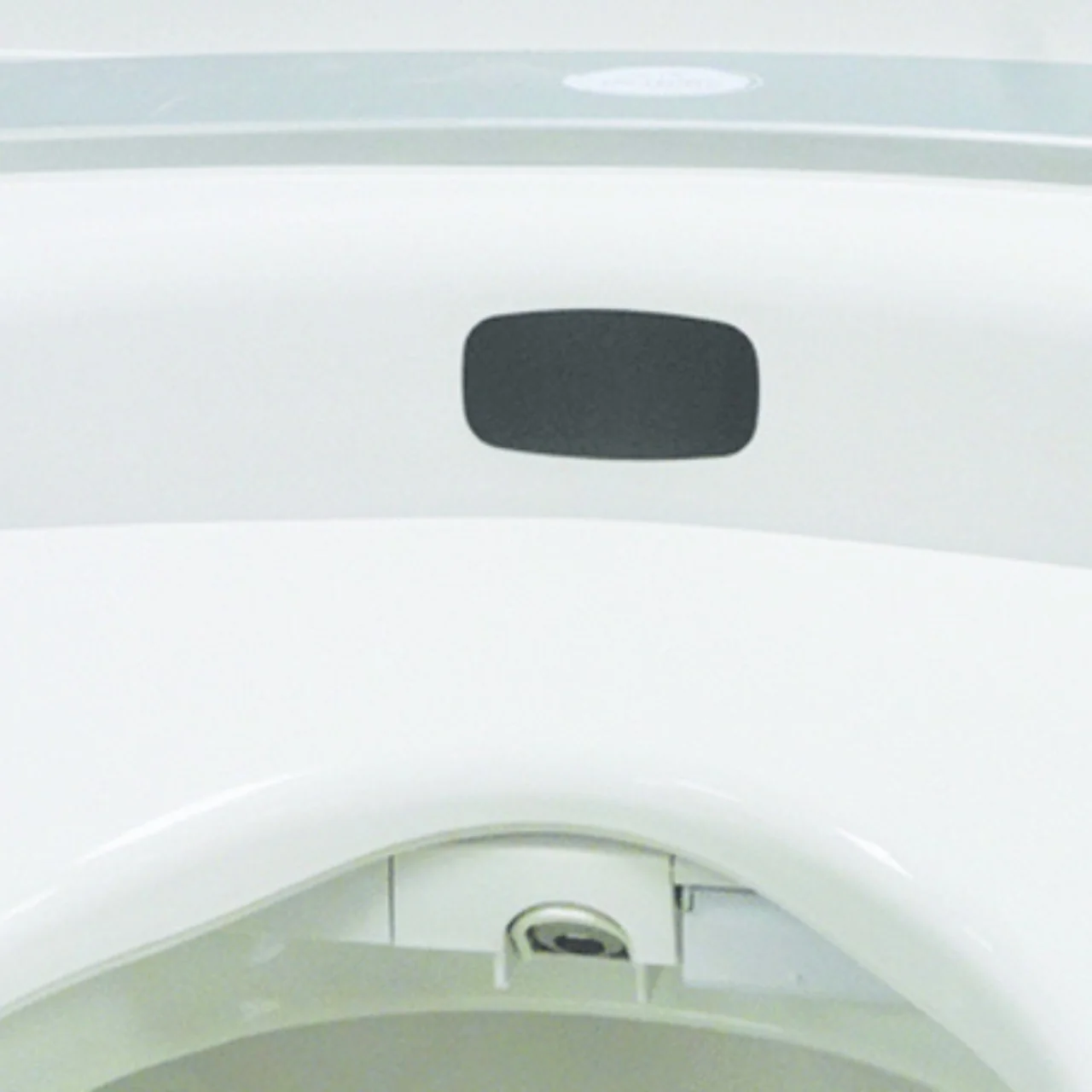

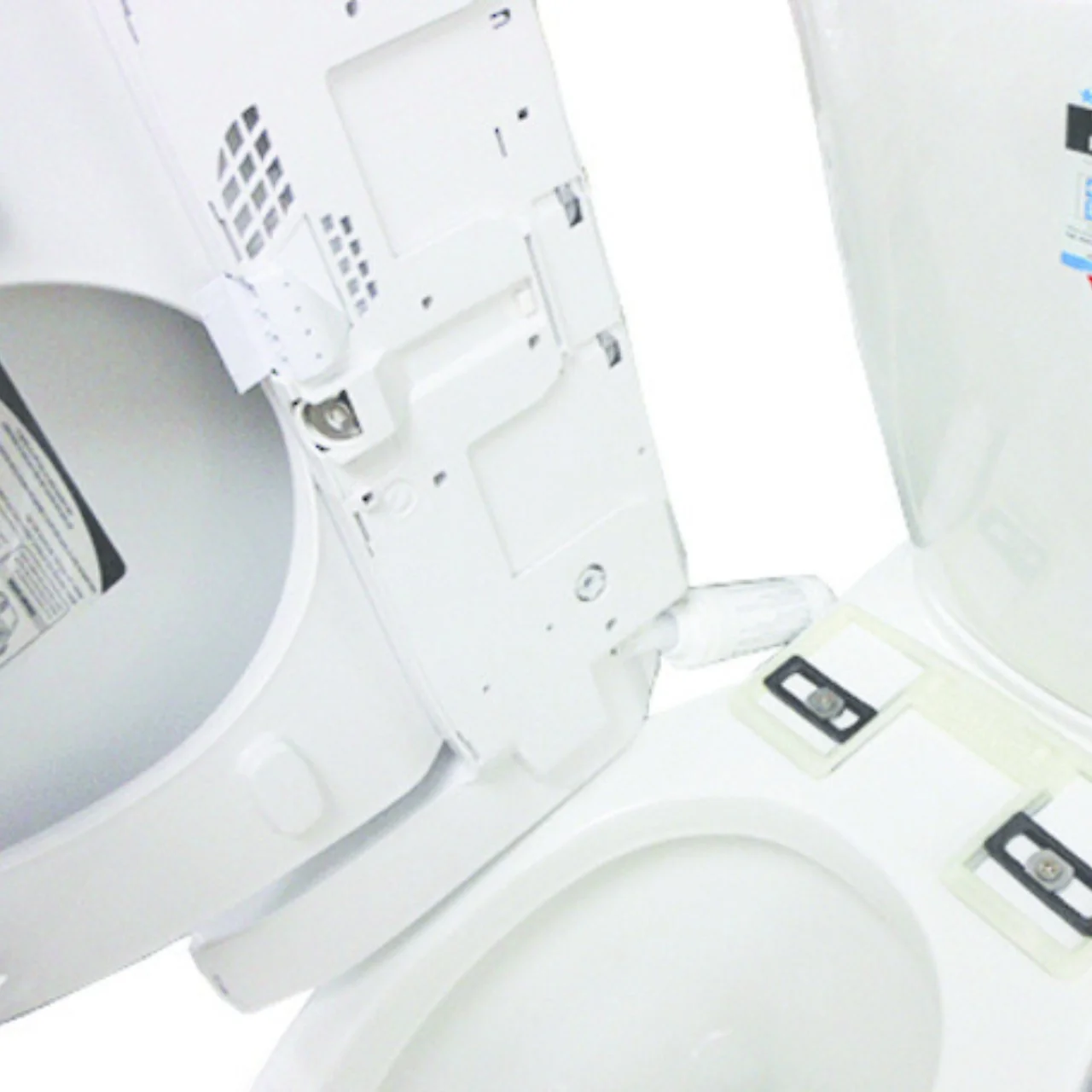

Hygiene is built in: the stainless steel nozzle cleans itself automatically, and a sitting sensor means the wash functions only operate when someone is seated – so children can’t set it off by accident. The Quiet-Close seat closes gently, and the Quick-Release design lets you lift the whole unit off its mounting plates to clean around the pan.
Installation: the water connection must be made by a licensed plumber in line with AS/NZS 3500.1, including a high hazard backflow prevention device if one is not already fitted on site (not supplied). The seat needs a power point with RCD protection beside the toilet (a dedicated outlet rated over 7 A – no extension leads or double adaptors) – if there isn’t one, have it installed by a licensed electrician.
Specifications
| Model | 99286A-0 |
|---|---|
| Colour / material | White / polypropylene |
| Overall length | 505 mm |
| Controls | Side control panel, user’s right-hand side |

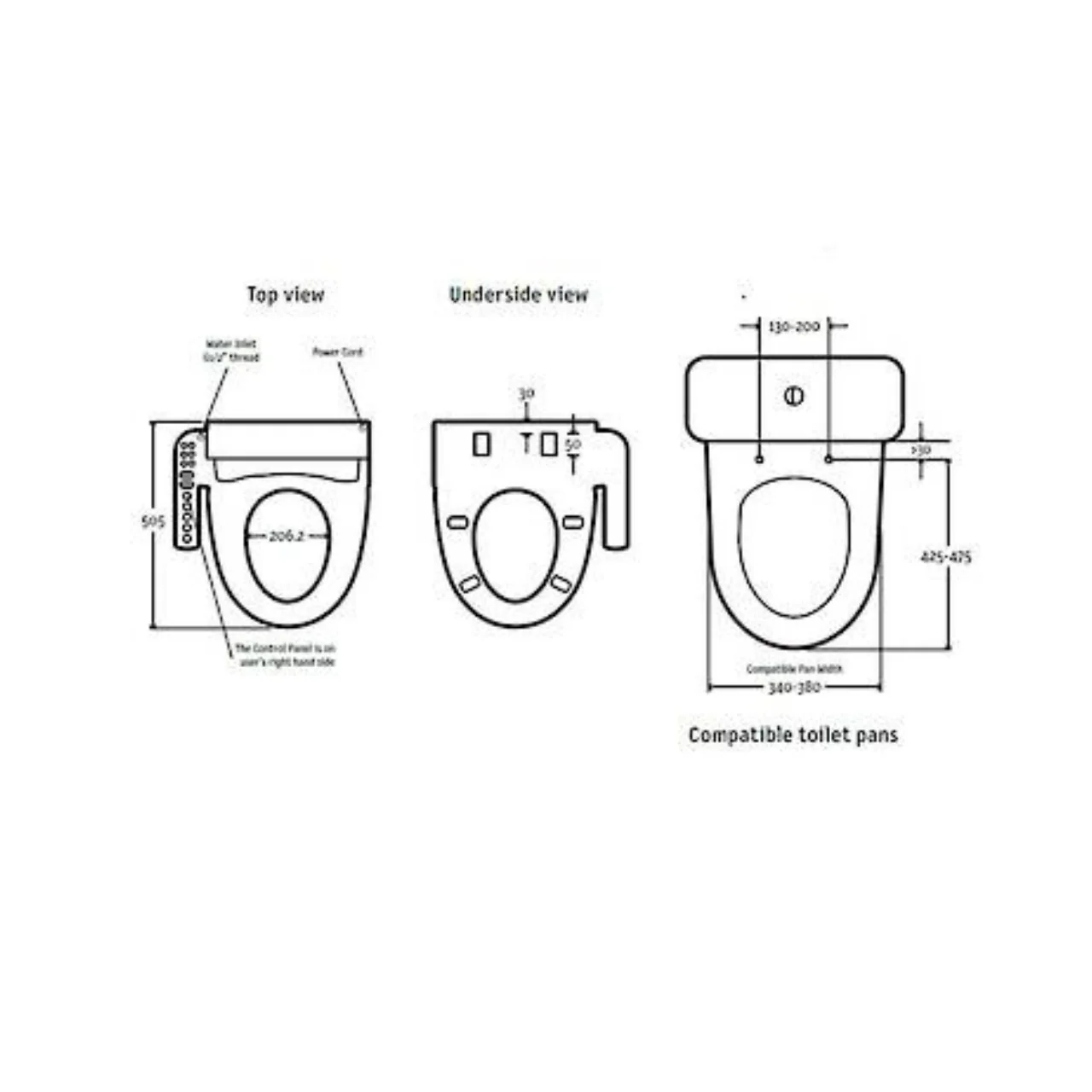

| Compatible toilet pans | Pan width 340–380 mm; seat fixing holes to front of pan 425–475 mm; fixing hole centres 130–200 mm; at least 30 mm between cistern and fixing holes |
| Water connection | G1/2" inlet; cold water supply only |
| Water pressure | 220–500 kPa |
| Water heating | Heated water reservoir |
| Power supply | 240 V AC, dedicated outlet rated over 7 A; RCD protection required |
| Wash modes | Rear, front (feminine), oscillating, turbo, auto/child |
| Comfort | Heated seat, warm air dryer, deodouriser |
| Energy saving | Two power-saving modes (Lo Econo / Hi Econo) |
| Safety | Sitting sensor – wash functions only operate when seated |
| Seat | Quiet-Close, Quick-Release |
| Maximum user weight | 120 kg |
| Certification | WaterMark certified to WMTS-051:2016; complies with AS/NZS 60335.2.84 electrical safety standard |
| In the box | Electronic bidet seat, seat fixing kit, ionic in-line water filter, T-connector, water inlet hose, check (non-return) valve, low–medium hazard backflow prevention device, installation instructions and quick start guide |
| Not included | High hazard backflow prevention device (required under AS/NZS 3500.1 if not already installed) |
Downloads
Download the Electronic Bidet Seat specification sheet (PDF)
Download the Electronic Bidet Seat installation and user guide (PDF)
