Overview
The Oliveri Inline system sits in the cold water line under your sink and sends filtered water out through the mixer tap you already have, so there is no second tap to fit and no extra hole in the benchtop. It suits new kitchens and retrofits alike.

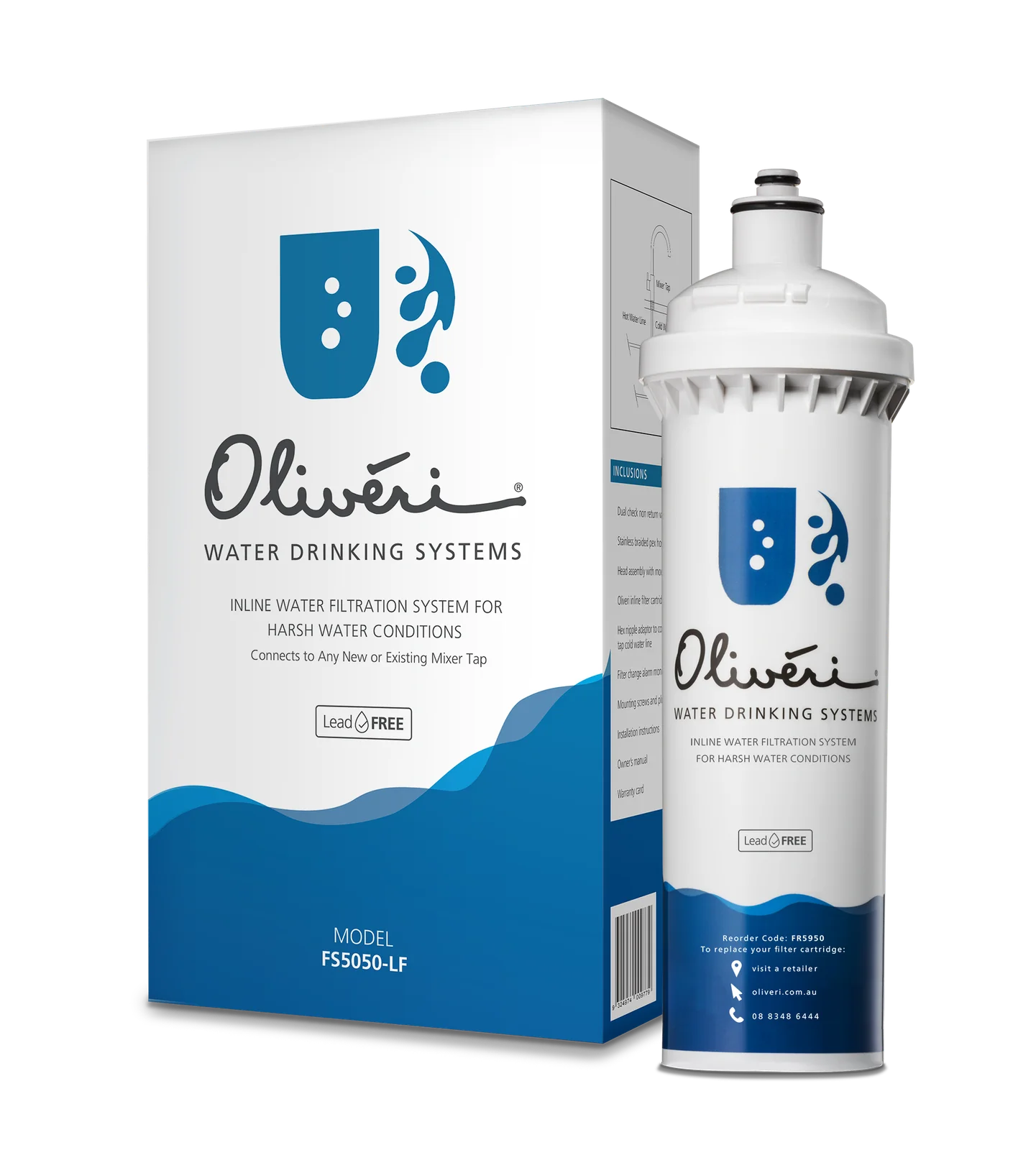

Two versions are available. The standard water model (FS5010-LF, cartridge FR5910) uses a 1 micron carbon block for most mains supplies. The harsh water model (FS5050-LF, cartridge FR5950) uses a 5 micron carbon block with limescale reduction for hard-water areas, helping to protect kettles, coffee machines and other appliances from scale build-up. Both reduce chlorine, unpleasant tastes and odours, dirt, rust and cysts.
The head unit mounts vertically or horizontally to suit your cupboard, and cartridges change with a simple twist – Oliveri recommends replacement after 56,700 litres or 12 months, whichever comes first. Connection to the water supply must be carried out by a licensed plumber; a pressure limiting valve is required where mains pressure exceeds 500 kPa.
Specifications
| Models | FS5010-LF (standard water) / FS5050-LF (harsh water) |
|---|---|
| Type | Inline – filters through an existing mixer tap |
| Micron rating | Standard: 1 micron with limescale reduction; Harsh: 5 micron with limescale reduction |
| Capacity | 56,700 litres or 1 year, whichever comes sooner (subject to water pressure, flow and quality) |
| Flow rate | 0–8 L/min |
| Water pressure | 70–500 kPa (pressure limiting valve required above 500 kPa) |
| Temperature | 2–38 °C (cold water only) |
| Connection | 1/2″ BSP |
| Installation | Vertical or horizontal |
| Space required (vertical) | 460 mm high x 225 mm wide (includes cartridge change clearance) |
| Space required (horizontal) | 460 mm wide x 225 mm high |
| Inclusions | Filter cartridge, head assembly with mounting bracket, dual check non-return valve, stainless braided PEX hose, hex nipple adaptor, mounting screws, plumber’s tape |

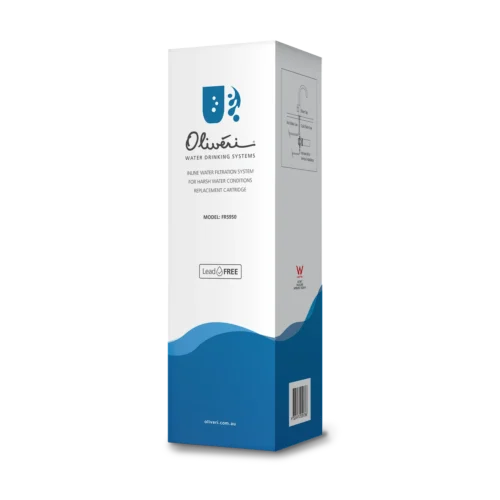

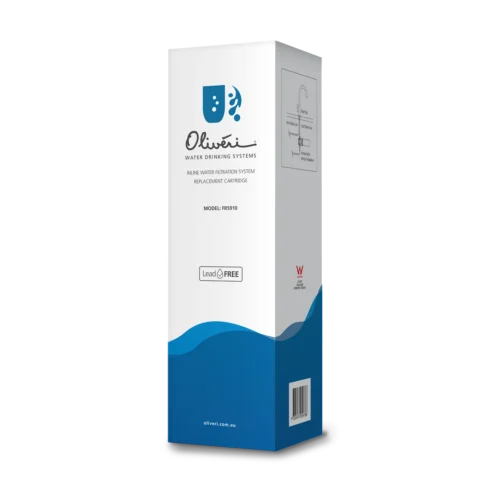

| Replacement cartridge | FR5910 (standard) / FR5950 (harsh) |
| Certification | WaterMark lead free, AS 3497, Lic. WM-032108 |
| Made in | Assembled in the USA from USA and imported parts |
| Weight | 2 kg |
| Warranty | 6 years (Oliveri) |
