Overview

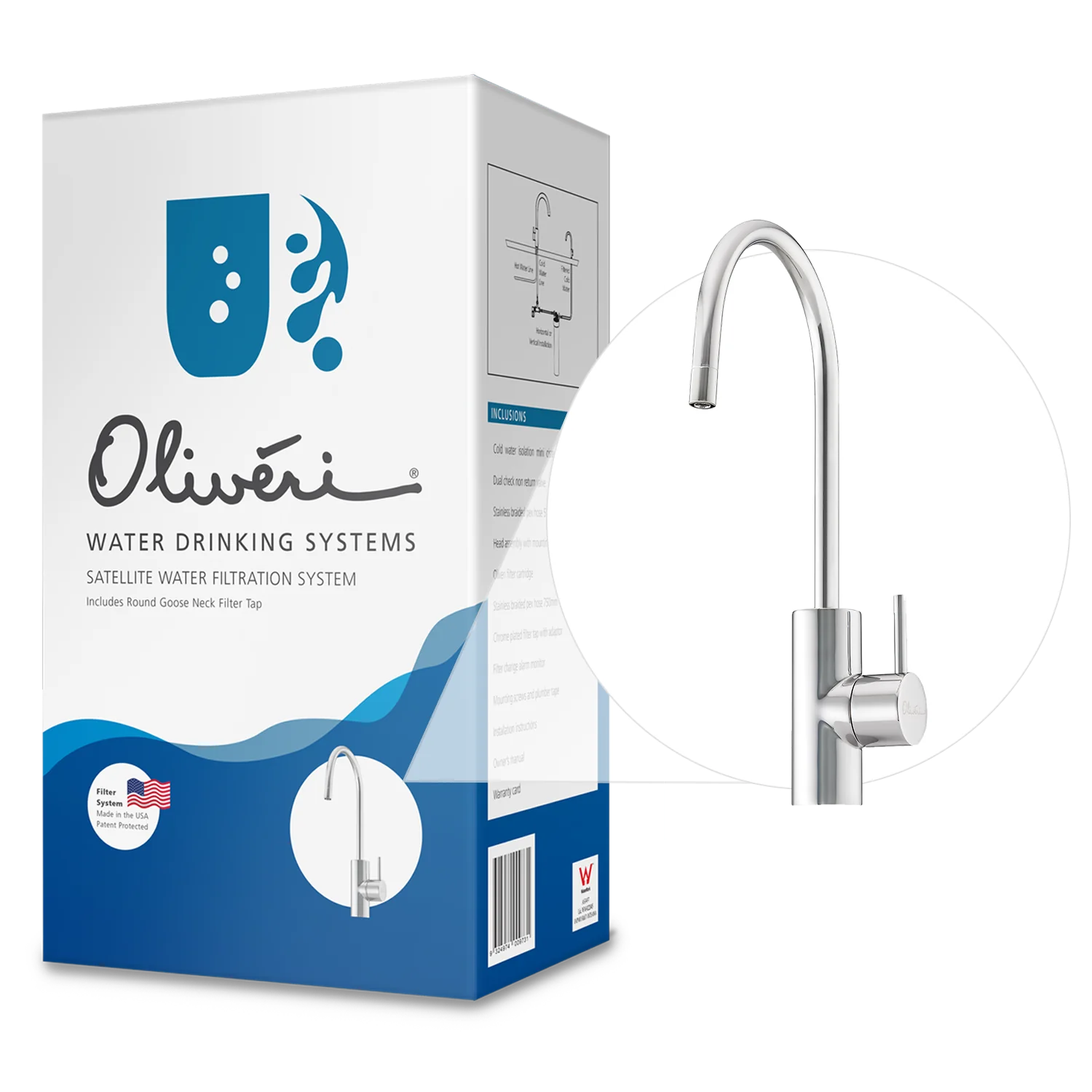

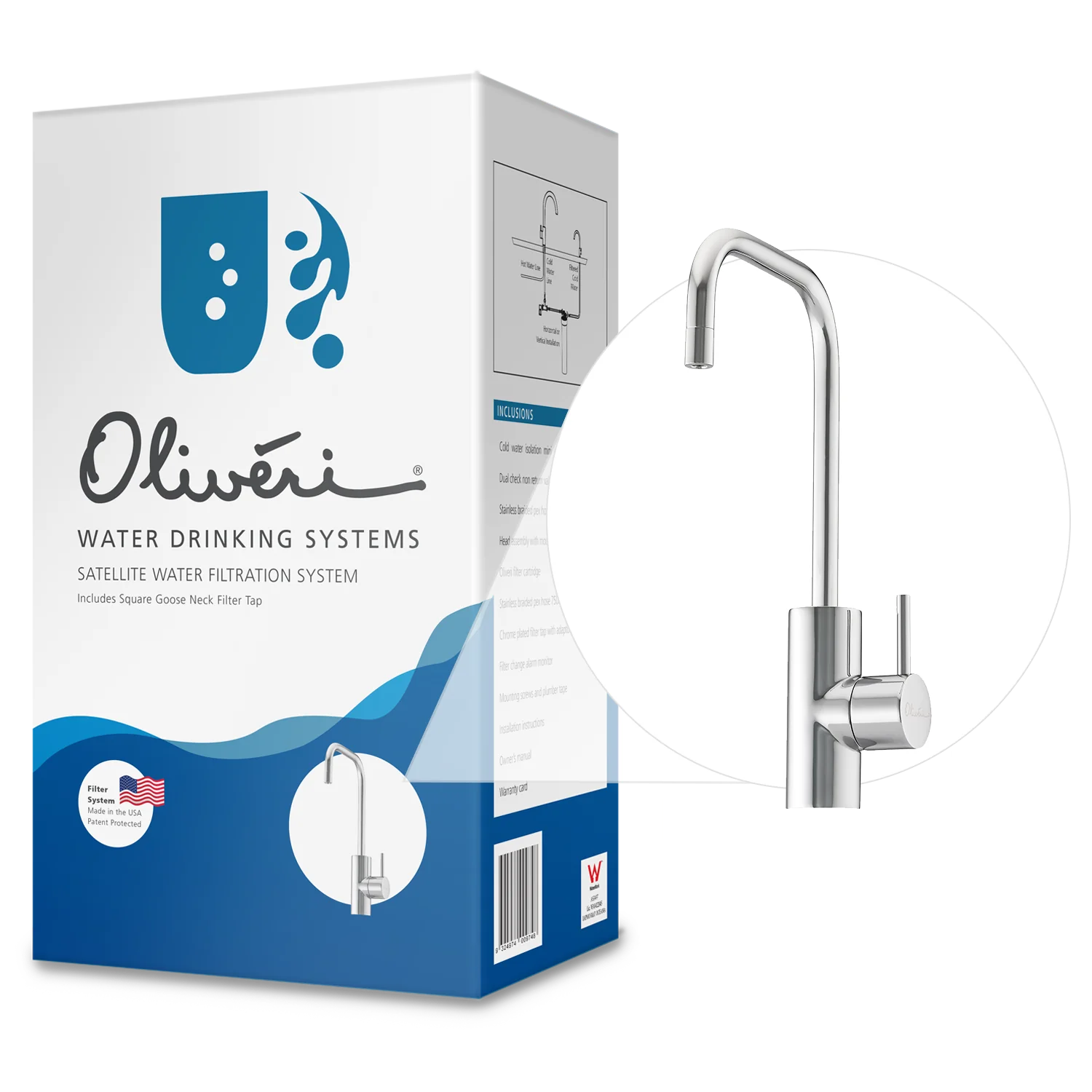

The Oliveri Satellite system gives you a separate, dedicated tap for filtered drinking water, leaving your main mixer for washing up. The kit includes a polished chrome gooseneck filter tap – choose the round profile (FS7025) or the square profile (FS7075) to suit your tapware.
Under the sink, a compact head unit holds a 1 micron carbon block cartridge (FR7905) that reduces chlorine, unpleasant tastes and odours, dirt, rust and cysts such as giardia and cryptosporidium. The head mounts vertically or horizontally, and the bayonet cartridge twists out for tool-free replacement every 9,450 litres or 12 months, whichever comes first.
Each kit includes the tap and adaptor, cartridge, head assembly with bracket, dual check valve, cold water isolation mini cistern tap, 750 mm stainless braided PEX hose, screws and plumber’s tape. Installation and water connection must be carried out by a licensed plumber; fit a pressure limiting valve where mains pressure exceeds 500 kPa.
Specifications
| Models | FS7025 (round gooseneck tap) / FS7075 (square gooseneck tap) |
|---|---|
| Type | Satellite – separate filter tap |
| Tap finish | Polished chrome |
| Tap dimensions | FS7025: 213 mm high, 100 mm reach; FS7075: 175 mm high, 110 mm reach |
| Tap hole | 13 mm |
| Micron rating | 1 micron |
| Capacity | 9,450 litres or 1 year, whichever comes sooner (subject to water pressure, flow and quality) |
| Flow rate | 0–1.9 L/min |
| Water pressure | 70–500 kPa (pressure limiting valve required above 500 kPa) |
| Temperature | 2–38 °C (cold water only) |
| Connection | 1/2″ BSP |
| Installation | Vertical or horizontal |
| Space required (vertical) | 460 mm high x 225 mm wide (includes cartridge change clearance) |
| Space required (horizontal) | 460 mm wide x 225 mm high |
| Replacement cartridge | FR7905 |
| Certification | WaterMark, AS 3497, Lic. WM-022045 |
| Made in | USA |
| Weight | 2 kg |
| Warranty | 6 years (Oliveri) |
Downloads
Download the Satellite system with round gooseneck tap (FS7025) specification sheet (PDF)
Download the Satellite system with square gooseneck tap (FS7075) specification sheet (PDF)
Download the Satellite system installation guide (PDF)
Download the Oliveri filter cartridge replacement guide (PDF)
