Product Description

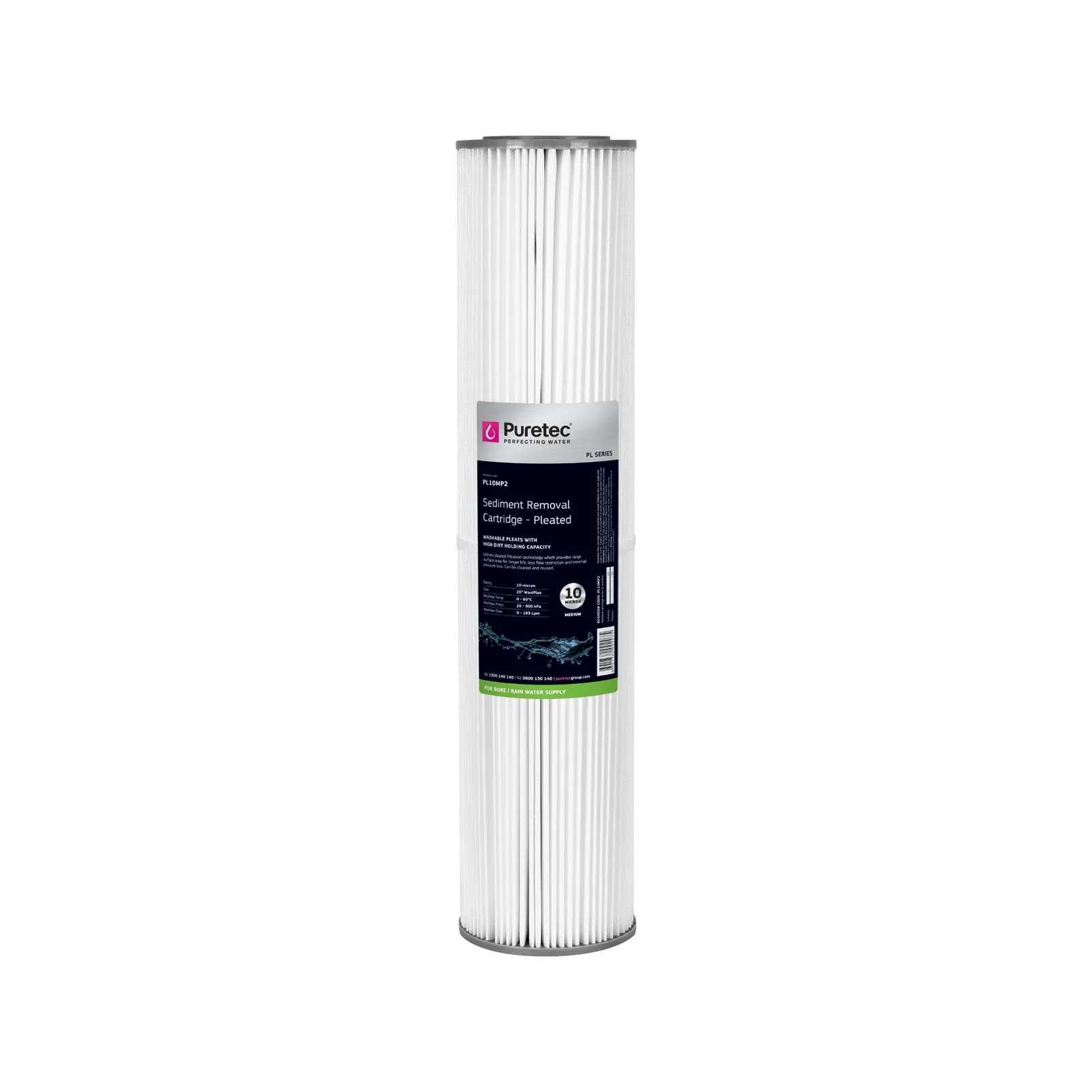

The Puretec PL10MP2 Pleated Sediment Cartridge is a high-performance, reusable filtration solution designed to effectively remove sediment and particulate matter from water supplies. Engineered for durability and efficiency, this 20″ MaxiPlus™ cartridge is ideal for whole-house, commercial, and industrial pre-filtration applications.
Constructed from a robust non-woven polyester media, the PL10MP2 provides excellent resistance to bacteria and chemical attack, ensuring long service life even in demanding environments. The pleated design significantly increases surface area, allowing for superior dirt-holding capacity and extended periods between cleaning or replacement.
The filter media is wrapped around a strong polypropylene core for added structural integrity, while both ends are sealed using a thermo-setting vinyl plastisol. This process forms a fully integrated end cap and gasket, preventing bypass and maintaining consistent filtration performance. Additionally, the overlap seam is sonically welded to further enhance efficiency by reducing internal bypass.
Designed for convenience, the cartridge is washable and reusable, making it a cost-effective and environmentally friendly option for sediment filtration.
Features & Benefits
Pleated design maximises dirt-holding capacity
Washable and reusable for extended lifespan
Durable polyester media resists bacteria and chemicals
High flow rates with low pressure drop
Strong polypropylene core for added strength
Sonically welded seam reduces internal bypass
Ideal for pre-filtration in high sediment applications
Specifications
Model: PL10MP2
Size: 4.5″ x 20″ (MaxiPlus™)
Micron Rating: 10 micron
Flow Rate: Up to 183 L/min
Media: Pleated non-woven polyester
Core: Polypropylene
Application: Sediment, dirt, rust, silt, and sand removal
Applications
Whole house water filtration systems
Rainwater and tank water filtration
Rural and high sediment environments
Commercial and industrial water treatment
Pre-filtration for carbon or reverse osmosis systems
