Overview
This Nero hinge hangs a 10mm frameless glass door straight off the wall. It mounts with a single plate and three fixing holes, and the 50mm wall screws are supplied in the box.
The door swings both in and out, and it closes on its own once it is within about 30° of shut. Two hinges carry a door of up to 35kg, or three hinges up to 52.5kg, for doors up to 800mm wide.
Specifications
| Brand | Nero Tapware |
|---|---|
| Model | NRSH101a |
| Type | 90° glass-to-wall shower hinge |
| Glass thickness | 10mm |
| Maximum door weight | 35kg (2 hinges) / 52.5kg (3 hinges) |
| Maximum door width | 800mm |
| Action | Opens in and out; self-closing from approx. 30° |

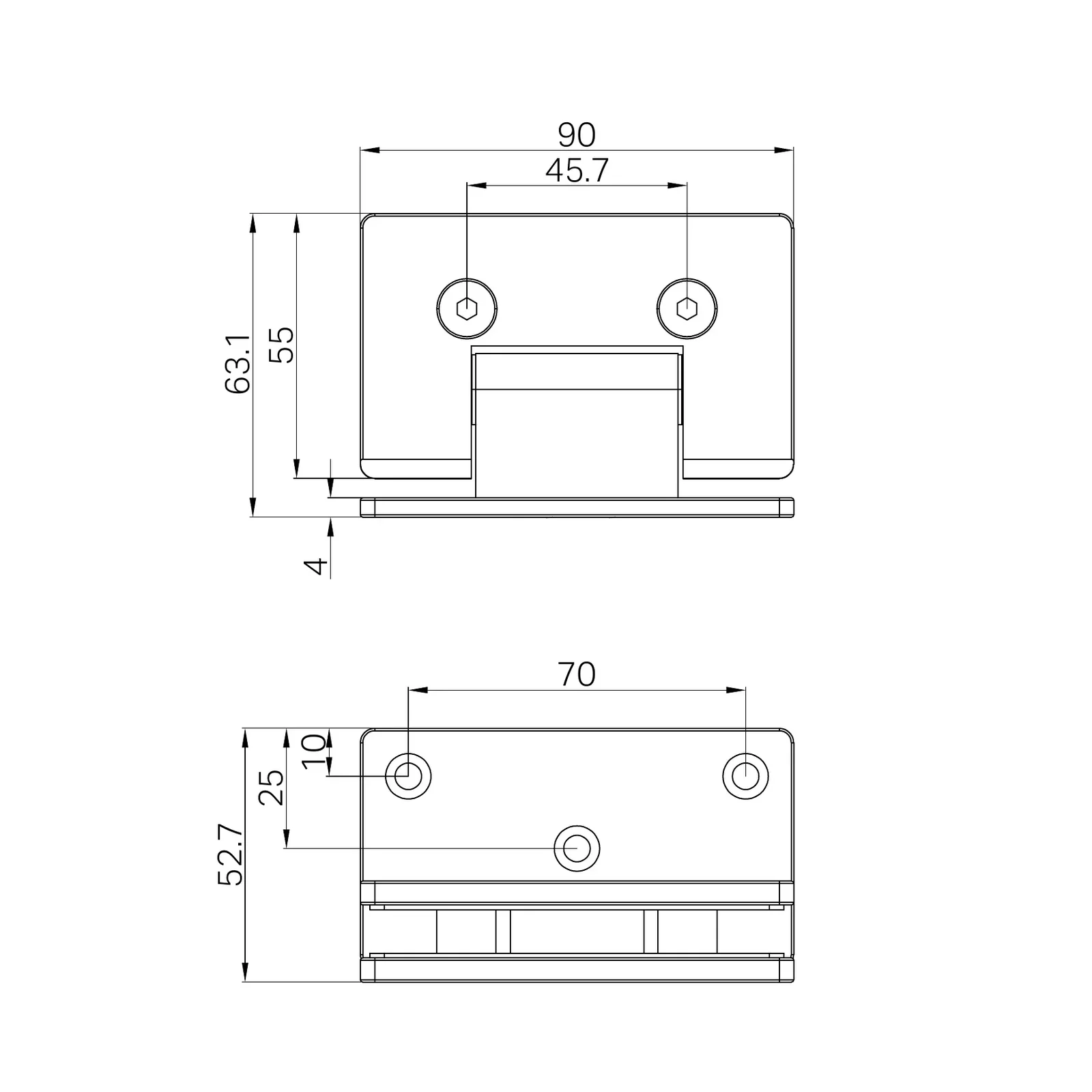

| Dimensions | 90 x 55mm hinge body (nominal) |
| Material | Brass |
| Finishes | Brushed bronze, brushed gold, brushed nickel, chrome, gun metal, matte black, tumbled antique brass |
| Warranty | 10 years replacement only – Nero warranty (glass hardware) |
| Installation | Professional installation recommended |
Downloads
Download the Nero 90° glass-to-wall shower hinge specification sheet (PDF)
Download the Nero 90° glass-to-wall shower hinge installation instructions (PDF)
More information

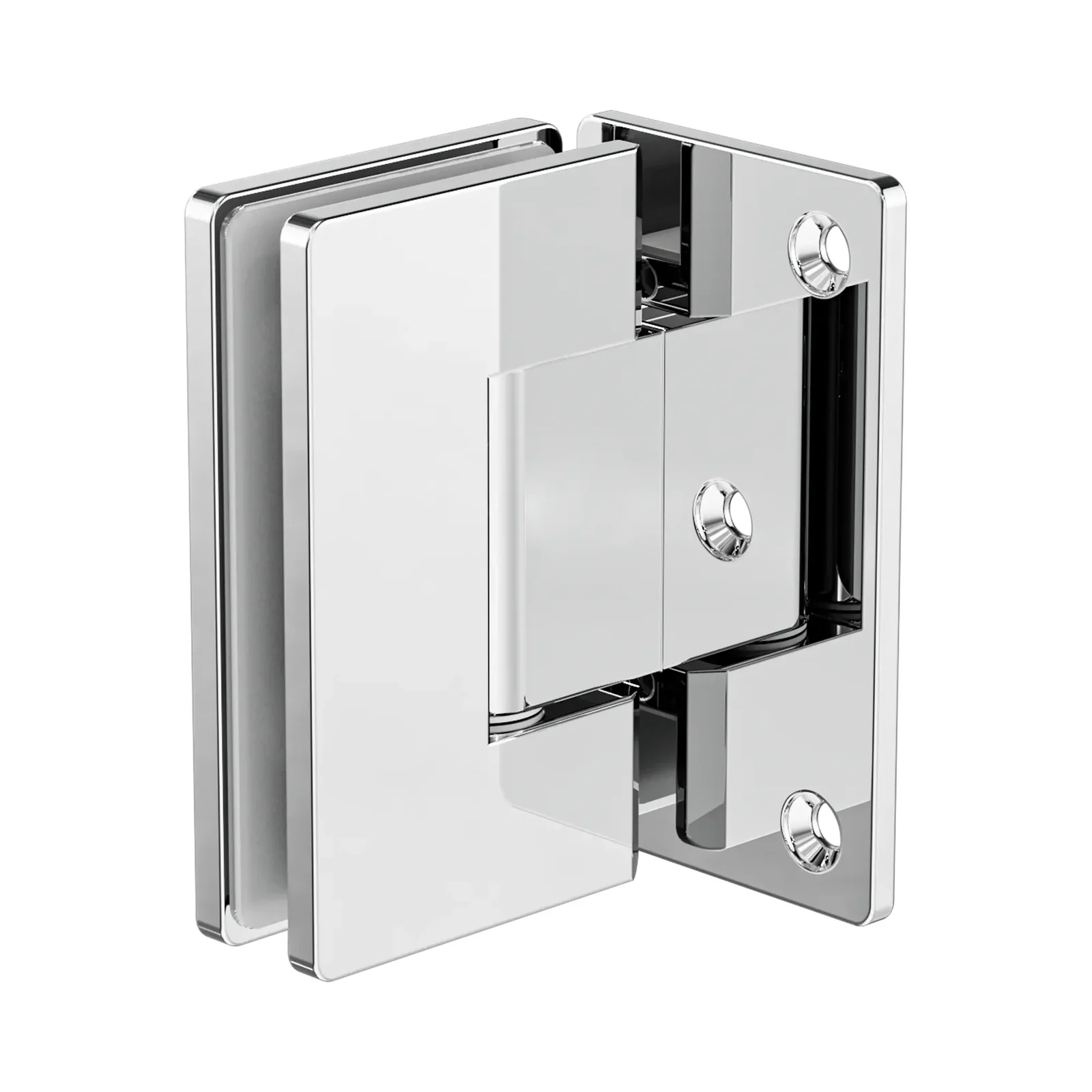

Nero 90° Glass to Wall Shower Hinge – 10mm Glass
Deliver a strong, seamless connection between glass and wall with the Nero 90° Glass to Wall Shower Hinge. Designed for modern frameless shower installations, this premium hinge combines durability, smooth functionality, and refined aesthetics to suit both residential and commercial applications.
Engineered specifically for 10mm toughened glass, this hinge provides a precise 90-degree glass-to-wall connection, making it ideal for pivot shower doors and fixed panel designs. The hinge opens both inwards and outwards, offering flexible access while maintaining a clean, minimalist appearance.
Manufactured from high-quality solid brass, the Nero hinge ensures excellent strength and corrosion resistance, making it perfectly suited for wet area environments. Its precision internal mechanism delivers a soft self-closing action from approximately 30°, allowing the door to return smoothly to the closed position for added convenience and safety.
Designed for reliability, the hinge supports doors up to 800mm wide, with a load capacity of up to 35kg using two hinges or 52.5kg with three hinges—providing confidence for everyday use.
The clean, architectural design is complemented by a single-side mounting plate with three wall fixing points, ensuring secure installation while maintaining a sleek, low-profile finish.
Available in a full range of designer finishes—Chrome, Brushed Gold, Brushed Bronze, Brushed Nickel, Gun Metal, Matte Black, and Tumbled Antique Brass—this hinge allows you to perfectly match your tapware and bathroom accessories for a cohesive, high-end look.
Features:
- 90° glass-to-wall hinge for frameless shower applications
- Suitable for 10mm toughened glass
- Opens inwards and outwards for flexible functionality
- Self-closing mechanism from approximately 30°
- Maximum door weight:
- 35kg (2 hinges)
- 52.5kg (3 hinges)
- Maximum recommended door width: 800mm
- Single-side mounting plate with 3 wall fixing holes
- Supplied with 50mm wall fix screws
- Precision-engineered with hex head machine screws
- Manufactured from high-quality solid brass
- Corrosion-resistant and ideal for wet areas
Applications:
- Frameless shower screens
- Glass-to-wall pivot doors
- Residential and commercial bathroom installations
- Architectural glass projects
Finish Options:
Chrome, Brushed Gold, Brushed Bronze, Brushed Nickel, Gun Metal, Matte Black, Tumbled Antique Brass
The Nero 90° Glass to Wall Shower Hinge offers the perfect balance of strength, smooth operation, and modern design—making it an essential component for high-quality frameless shower installations.
