Overview

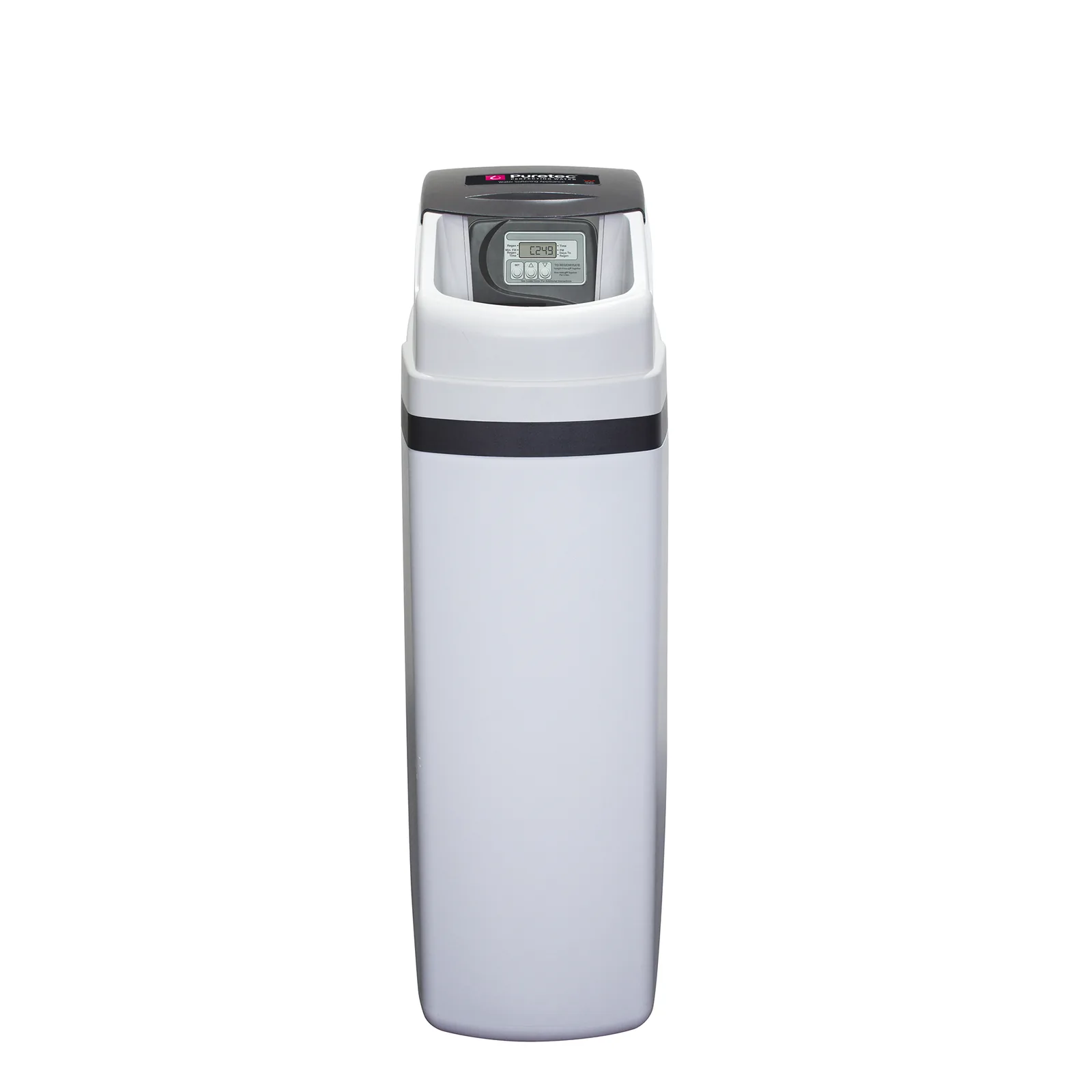

The SOL40-E1 is a WaterMark approved water softener designed to reduce water hardness and protect your pipes and appliances from scale buildup.
It uses automatic, time-based regeneration, backwashing at pre-set intervals for hassle-free operation.
Note: For volumetric regeneration, backwashing only when necessary to help save water and salt – opt for the SOL40-E3 model.
Why soften hard water?
Hard water contains dissolved minerals such as limestone, iron, sulphur, magnesium and calcium. These minerals cause scaling that can block plumbing and shorten the life of appliances such as hot water systems, dishwashers and washing machines.
The benefits of soft water:
Protects appliances by reducing scale buildup
Helps maintain efficiency in hot water systems and dishwashers
Saves money by extending the service life of appliances
Reduces waste by avoiding frequent replacements
Say no to scale in your home or facility – soft water keeps systems running efficiently while helping your appliances last longer.
Install a pre-filter like the WH2 or FilterWall F5 to further extend your softener system warranty, protect your investment, and enjoy great-tasting water from every tap.
Specifications
| Model | SOL40-E1 |
|---|---|
| Micron rating | – |
| Maximum flow rate | 100 Lpm |
| WaterMark | WMTS103 Licence No. WM 74593 Pro-Switch Pty Ltd |
| Warranty | Any claim under this warranty must be made within 6 years of the date of purchase of the product. This product is warranted to be free of defect of material and workmanship for 6 years from date of purchase. 6 year warranty is 1 year parts and labour, plus 5 years parts only. Excludes consumables. Puretec is renowned for its quality and after-sales support so if you have any issues please call 1300 140 140 (AU) or 0800 130 140 (NZ). To make a warranty claim, contact us directly or the place of original purchase. All costs relating to a warranty claim must be approved by Puretec prior to any work being carried out. |

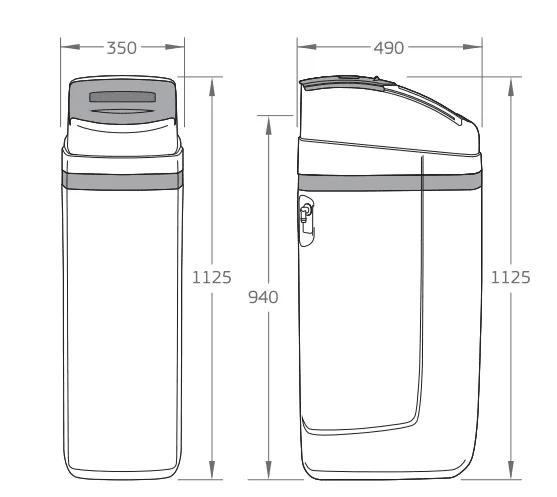

| Product dimensions (L × D × H) | 490 × 490 × 1125 mm |
| Product weight | 38 kg |
More information
A WaterMark approved water softener to reduce scaling and spotting in your home or building. Insist on a certified system.
Hard water is water that contains dissolved minerals such as limestone, iron, sulphur, magnesium and calcium. If these minerals are not removed from your water, they will cause scaling, eventually blocking plumbing and shortening the life of appliances – particularly hot water units, dishwashers, washing machines, etc.
Say ‘no’ to scale in your facility.
Minerals found in hard water build up in appliances such as hot water systems and dishwashers reducing their service life and making them less efficient. Soft water saves you money by replacing them less often and saves the environment by cutting waste.
FEATURES & BENEFITS
• A WaterMark approved water softener to reduce scaling and spotting in your water system.
• Glassware is now clear and shiny with no scale, smear or spots.
• Protects against premature replacement of hot water systems and many other appliances and fixtures.
• Enjoy washing your car with a scale-free finish.
• It’s easier to wash soap and shampoo out completely so your shower screen is easier to clean.
• Now ice cubes look clearer and more appealing.
• Can also remove traces of metals such as copper, iron and manganese.
• Sleek, modern design to complement your facility.• Class-leading efficiency due to premium resins and optimised flow dynamics.
SPECIFICATIONS
Ordering Code: SOL40-E1
Valve: Automatic E1-matic
Flow Rate: 40 Lpm
Maximum Flow Rate: 100 Lpm
Capacity: 18,000 litres*
Connection: 1” Male BSPT, ½” Drain
Min/Max Pressure: 140–860 kPa
Operating Temperature: 4°C – 45°C (40°F – 113°F)
Power Supply: 230V AC / 50 Hz
Warranty: 6 years^ **** See below information on how to extend this warranty to 10 years
Replacement Media Kits: RMK-SOL40
Accessories:
WTV5090 – Micro switch for automation of external equipment
WTV5000 – Bypass assembly for testing and maintenance
PTE30 – Hardness test kit
WTV5050 – Blending valve for partial hardness removal
SS5000 – SoftenerSafe Media (5 litres)
*Based on a hardness of 100 ppm.
Note:
Free chlorine tolerance is 1 ppm. High chlorine levels will permanently damage the softening resin and are not covered under warranty.
If chlorine exceeds this limit, we recommend a carbon pre-filter such as the WH2 or CFS Series. Please consult Puretec for a specific recommendation.
In any case, a carbon pre-filter is recommended to protect against chlorine spikes and prolong the resin life.
**** The warranty on the SOL system remains 6 years by default, but extends to 10 years* when the following conditions are met:
1. The SOL system must be installed with one of the following Puretec pre-filters:
WH2-55
FilterWall-F4, FilterWall-F5, FilterWall-F6
2. Both genuine Puretec cartridges and Softrol™ media must be routinely replaced per product instructions.
*10-Year Warranty breakdown:
Year 1: Parts & labour
Years 2–10: Parts only (excludes consumables)
The extended warranty does not cover:
Consumables (e.g. Puretec cartridges, Softrol™ replacement media kits)
Damage from misuse, neglect, incorrect installation, external causes, or use of non-genuine parts
Labour beyond the first year
