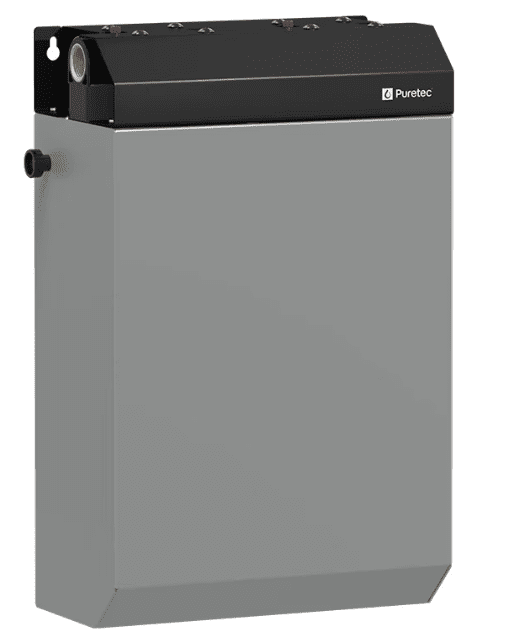

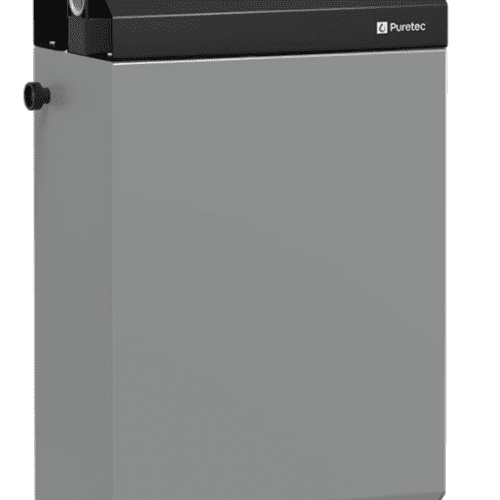

Puretec WH2-55 AMC (WH2-55AMC-LF) with aluminium cover
The Puretec WH2-55 AMC (model WH2-55AMC-LF) is Puretec’s WH2-55 whole house water filter for mains water, fitted with an aluminium Architecturally Mounted Cover. Inside, it’s identical to the standard WH2-55: a PX05MP2 sediment cartridge (5 micron*) and a CB10MP2 carbon block (10 micron*) reduce sediment, chlorine, chemicals, taste and odour at up to 55 Lpm, with no power needed.
What the WH2-55AMC cover adds

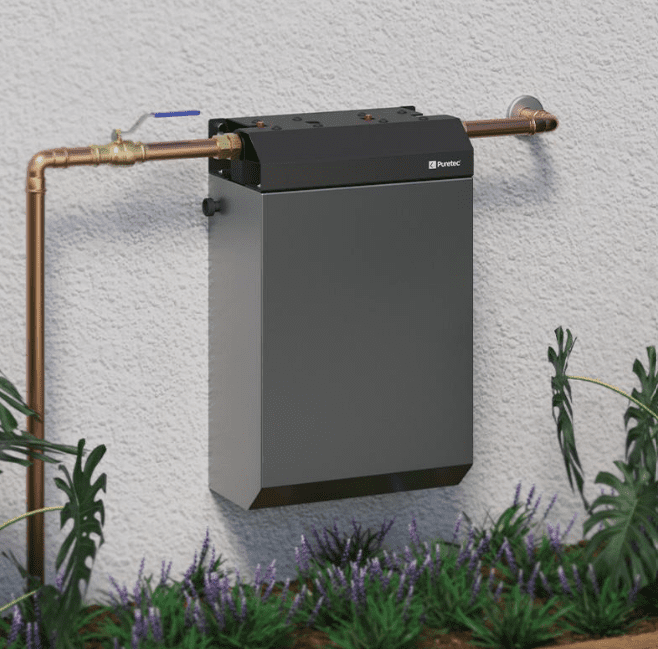

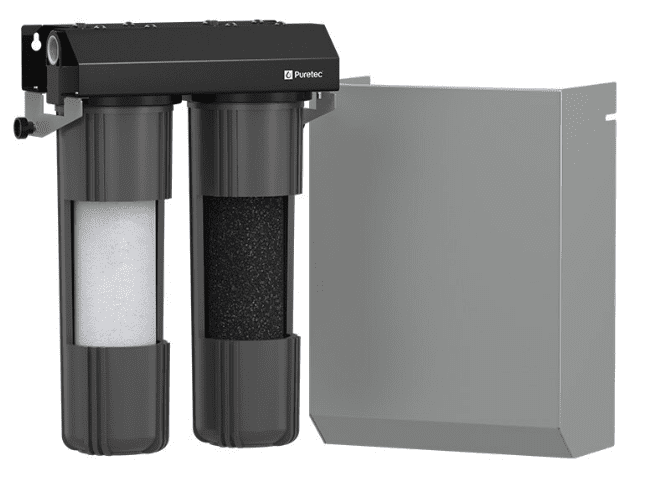

Puretec says the aluminium cover is “built to withstand the elements with its tamper-proof casing”, keeping the system secure and tidy wherever it’s installed. Two black handles hold it on; loosen them and it slides forward for cartridge changes.
WH2-55 AMC or standard WH2-55?
| Model code | WH2-55: WH2-55-LF. WH2-55 AMC: WH2-55AMC-LF. |
|---|---|
| Cover | WH2-55: none; housings open on the aluminium wall bracket. WH2-55 AMC: tamper-proof aluminium cover. |
| Same on both | PX05MP2 + CB10MP2 cartridges (20″, 5 micron*), 55 Lpm, 1″ BSP, GR-WH255 care kit, 10-year warranty^. |

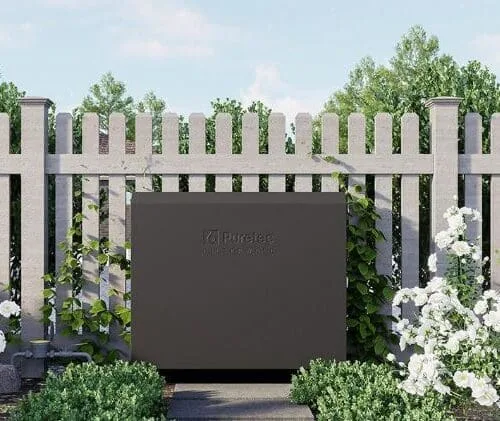

Don’t need the cover? The standard Puretec WH2-55 (WH2-55-LF) has identical filtration on an open wall bracket. For the same filtration in an in-wall cabinet, see the FilterWall IM2.
Specifications
| Model | WH2-55AMC-LF |
|---|---|
| Cover | Aluminium Architecturally Mounted Cover (included) |
| Cartridges | PX05MP2 polyspun sediment (5 micron*); CB10MP2 carbon block (10 micron*) |
| Cartridge size | 4.5″ × 20″ |
| Micron rating | 5 micron* |
| Maximum flow rate | 55 Lpm |
| Connection | Lead-free brass 1″ BSP (25 mm) |
| Water temperature | Cold line only, 0–52 °C |
| Power | None required |
| Dimensions (W × H) | 388 × 620 mm |
| WaterMark | AS 3497, licence WM 74617 |
| Warranty | 10 years^ (excludes cartridges) |
Service schedule

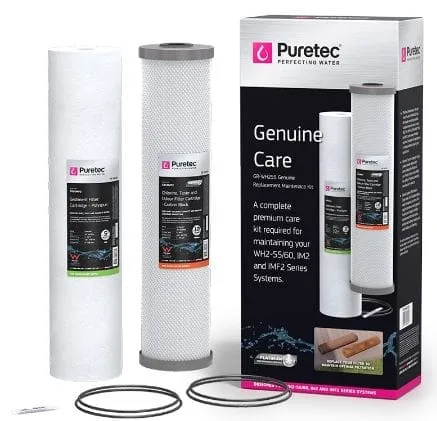

| Every 6–12 months | Replace both cartridges, depending on water quality and usage, or when taste and odour return. The GR-WH255 kit has both, plus O-rings and lubricant. |
|---|---|
| Every 3–5 years | Replace the housing O-rings. |
Changing the cartridges
- Turn off the water and relieve the pressure.
- Loosen the two black thumb handles and slide the cover forward.
- Unscrew the bowls (wrench provided) and clean them with soap and warm water.
- Lubricate the O-rings, seat the new cartridges and hand-tighten the bowls.
- Turn the water on, purge the air, run it for 2 minutes, refit the cover and check for leaks.
Installation
Puretec requires installation by a licensed plumber. Point-of-entry installs need an approved dual check backflow prevention device, and a pressure limiting valve may be required; your plumber will confirm. Neither is included. Avoid direct sunlight, protect it from freezing and leave 50 mm under the bowls.
Downloads
Download the Puretec WH2-55 AMC flyer (PDF, 2.2 MB)
Download the Puretec Mains water product guide (PDF, 28.9 MB)
Frequently asked questions
What’s the difference between the WH2-55 AMC and the WH2-55?
Only the aluminium cover (AMC stands for Architecturally Mounted Cover). Filtration, cartridges, flow and warranty are the same. Without the cover, choose the standard WH2-55.
Which replacement cartridges does the WH2-55AMC take?
PX05MP2 and CB10MP2, the same as the WH2-55, or both in the GR-WH255 kit, which Puretec lists for the WH2-55AMC-LF.
Can it go in direct sunlight?
Puretec’s installation guide, which covers the WH2-55AMC, says to avoid direct sunlight. The cover is for weather and tamper protection.
Will it soften hard water?
No. Puretec suggests pairing it with a SOL Series softener, such as the SOL30-E3.
Not sure which part fits? Call or text us on 0447 203 775 with your system’s model (it’s on the label on the unit) or a photo, and we’ll check for you.
*Micron rating is nominal.
^10-year warranty is 1 year parts and labour, plus 9 years parts only. Excludes cartridges. See the Puretec warranty statement.
