Overview
The SOL40-E3 is a WaterMark approved water softener designed to reduce water hardness and protect your pipes and appliances from scale buildup. Unlike time-based systems, the SOL40-E3 uses volumetric regeneration, meaning it only backwashes when necessary. This intelligent process helps save both water and salt while keeping maintenance low.
Why soften hard water?
Hard water contains dissolved minerals such as limestone, iron, sulphur, magnesium and calcium. These minerals cause scaling that can block plumbing and shorten the life of appliances such as hot water systems, dishwashers and washing machines.
The benefits of soft water:
Protects appliances by reducing scale buildup
Helps maintain efficiency in hot water systems and dishwashers
Saves money by extending the service life of appliances
Reduces waste and salt use with volumetric regeneration
Provides softened water for drinking, cooking, bathing and laundry
Backed by a 6-year warranty, the SOL40-E3 delivers a reliable, long-term solution for households dealing with hard water.
Install a pre-filter like the WH2 or FilterWall F5 to further extend your softener system warranty, protect your investment, and enjoy great-tasting water from every tap.
Specifications
| Model | SOL40-E3 |
|---|---|
| Micron rating | – |
| Maximum flow rate | 100 Lpm |
| WaterMark | WMTS103 Licence No. WM 74593 Pro-Switch Pty Ltd |
| Warranty | Any claim under this warranty must be made within 6 years of the date of purchase of the product. This product is warrantied to be free of defect of material and workmanship for 6 years from date of purchase. 6 year warranty is 1 year parts and labour, plus 5 years parts only. Excludes consumables. |

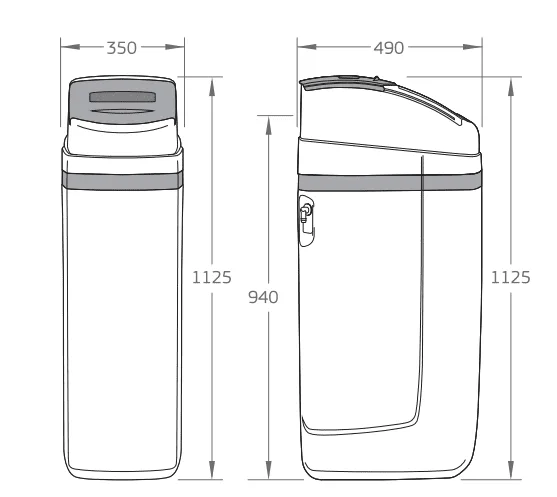

| Product dimensions (L × D × H) | 490 × 490 × 1125 mm |
| Product weight | 38 kg |
More information

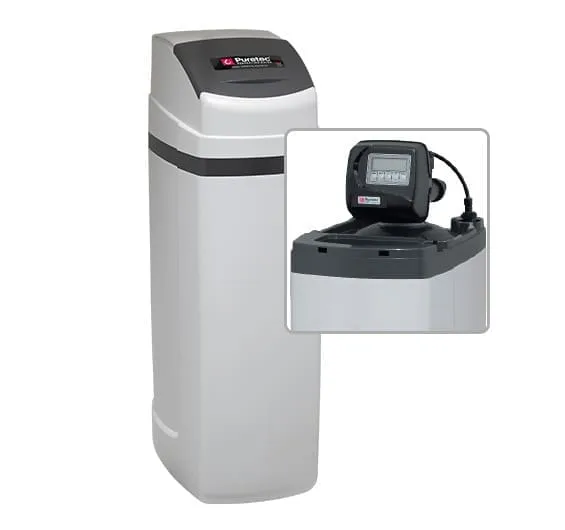

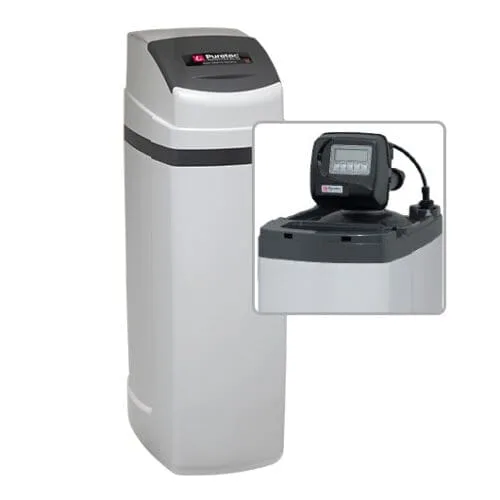

Puretec SOL40-E3 Water Softener Volumetric
A WaterMark approved water softener to reduce scaling and spotting in your home or building. Insist on a certified system.
Hard water is water that contains dissolved minerals such as limestone, iron, sulphur, magnesium and calcium. If these minerals are not removed from your water, they will cause scaling, eventually blocking plumbing and shortening the life of appliances – particularly hot water units, dishwashers, washing machines, etc.
Say ‘no’ to scale in your facility.
Minerals found in hard water build up in appliances such as hot water systems and dishwashers reducing their service life and making them less efficient. Soft water saves you money by replacing them less often and saves the environment by cutting waste.
FEATURES & BENEFITS
• A WaterMark approved water softener to reduce scaling and spotting in your water system.
• Glassware is now clear and shiny with no scale, smear or spots.
• Protects against premature replacement of hot water systems and many other appliances and fixtures.
• Enjoy washing your car with a scale-free finish.
• It’s easier to wash soap and shampoo out completely so your shower screen is easier to clean.
• Now ice cubes look clearer and more appealing.
• Can also remove traces of metals such as copper, iron and manganese.
• Sleek, modern design to complement your facility.
• Class-leading efficiency due to premium resins and optimised flow dynamics.
SPECIFICATIONS
Ordering Code: SOL40-E3
Valve: Volumetric E3-matic
Flow Rate: 40 Lpm
Maximum Flow Rate: 100 Lpm
Capacity: 18,000 litres*
Connection: 1” Male BSPT, ½” Drain
Min/Max Pressure: 140–860 kPa
Operating Temperature: 4°C – 45°C (40°F – 113°F)
Power Supply: 230V AC / 50 Hz
Warranty: 6 years^ **** See below information on how to extend this warranty to 10 years
Replacement Media Kits: RMK-SOL40
Optional Accessories:
WTV5090 – Micro switch for automation of external equipment
WTV5000 – Bypass assembly for testing and maintenance
PTE30 – Hardness test kit
WTV5050 – Blending valve for partial hardness removal
SS5000 – SoftenerSafe Media (5 litres)
* Based on a hardness of 100 ppm.
Note:
Free chlorine tolerance is 1 ppm. High chlorine levels will permanently damage the softening resin and are not covered under warranty. If chlorine exceeds this limit, a carbon pre-filter (such as the WH2 or CFS Series) is recommended. Please consult Puretec for specific recommendations.
In any case, a carbon pre-filter is recommended to protect against chlorine spikes and prolong resin life.
**** The warranty on the SOL system remains 6 years by default, but extends to 10 years* when the following conditions are met:
1. The SOL system must be installed with one of the following Puretec pre-filters:
WH2-55
FilterWall-F4, FilterWall-F5, FilterWall-F6
2. Both genuine Puretec cartridges and Softrol™ media must be routinely replaced per product instructions.
*10-Year Warranty breakdown:
Year 1: Parts & labour
Years 2–10: Parts only (excludes consumables)
The extended warranty does not cover:
Consumables (e.g. Puretec cartridges, Softrol™ replacement media kits)
Damage from misuse, neglect, incorrect installation, external causes, or use of non-genuine parts
Labour beyond the first year
